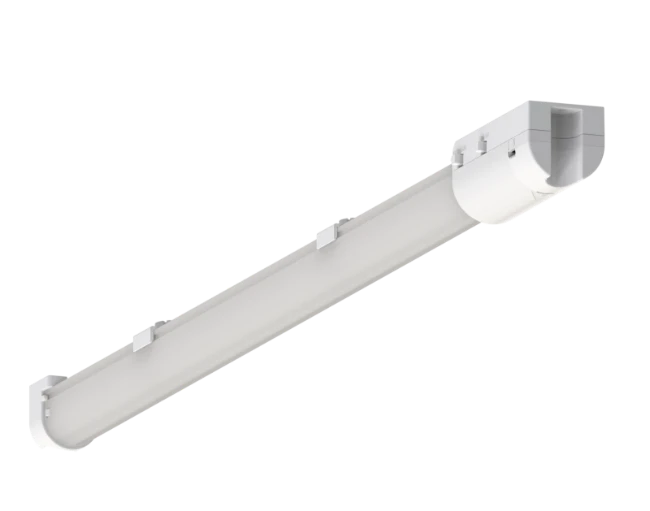

Linear Clio EcoMax

LEDClio-Lin-E L06-7/14W-830/840

Product Code
805012006800
  • Linear Clio EcoMax has a compact design, perfect for upgrading old tube fixtures in existing metal housings
  • Luminaire with integrated CCT-switch for color selection (3000K/4000K)
  • Driver with integrated Power Switch
  • Delivers consistent light output for up to 50,000 hours at L80 level
  • Easy to install with both magnetic and screw mounting options included
  • DC compatibility makes it suitable for use with central emergency lighting systems

Specifications Packaging

Electrical data

Voltage type AC/DC
Nominal voltage 220|240 V
Max. number of luminaires per miniature circuit breaker B16 (MCB) 22
Max. number of luminaires per miniature circuit breaker C16 (MCB) 38
Max. system power 14 W
Power factor 0.9
Surge protection 1 kV
With sensor No
Max. inrush current 11 A
Inrush time 131
Max. number of luminaires per miniature circuit breaker C10 (MCB) 23
Max. number of luminaires per miniature circuit breaker C13 (MCB) 30
Including emergency lighting No
Nominal voltage DC 176|264 V
Frequency 50|60 Hz

Photometrical data

Colour temperature 3000|4000 K
Equivalent to TL 1x35W
Colour consistency (SDCM) 5
Colour rendering index (CRI) > 80

Light technical data

Beam angle 145°

Lifespan

Lifetime (L70) 70000 h
Lifetime (L80) 50000 h
On-/Off-cycles 25000

Capabilities

Sensor technology No sensor
Sensor type No sensor
Dimmability On-Off
With sensor No

Certificates and standards

Degree of protection (IP) IP20
Protection class according to IEC 61140 II
Glow wire test 650°C
Type of control gear LED operating device current-controlled
With control gear Yes
Driver failure rate (at 5,000 hrs) 10%
Input current 0.07 A
Wirethrough No
Housing colour White
Finishing White RAL9003
Optical material Polycarbonate
Cover material Polycarbonate
Lens material Polycarbonate
Pressure valve No
Coastal proof No
Width 35 mm
Length 585 mm
Height/depth 34 mm
Application temperature 25°C
Storage environment -20|60°C
Operating temperature -25|45°C
EAN codeEU HS CodePackagingAmountSize (L x W x H)Weight
693720962285394054239CT10.6 x 0.04 x 0.036 m0.18 KG

Downloads

805012006800_ProductSheet_en.pdf
LDT_805012006800.ldt
IM_Lin_Clio_E1.pdf
Neutral_gb_805012006800.txt OPPLE_gb_805012006800.txt
